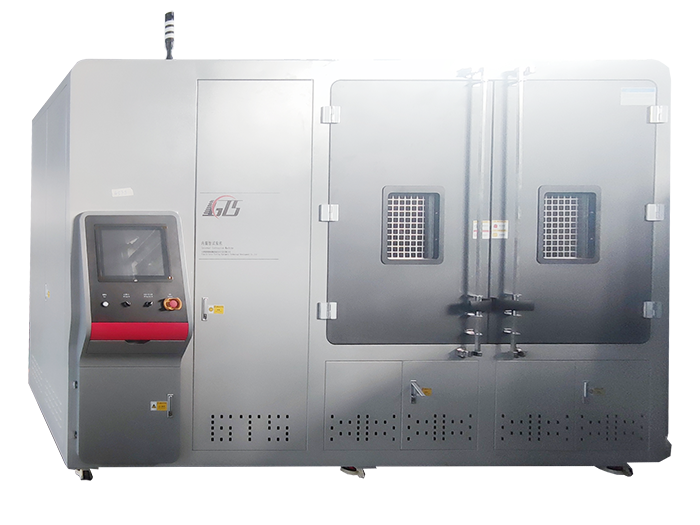

INTERNAL CORROSION TEST BENCH

INTERNAL CORROSION TEST BENCH-TIANJIN GETES TESTING EQUIPMENT TECHNOLOGY DEVELOPMENT CO., LTD.

The test is set through the interface, and the automatic control starts and completes the test with one button. The test parameters such as medium temperature, flow, pressure, number of cycles, time, etc. can be set, and the test parameters such as medium temperature, flow, pressure, number of completions, pH value, running time, etc. can be displayed. The test will automatically stop when the time is set to end or abnormal.

Equipment parameters

Test medium: 40% coolant and 60% ASTM solution

Pressure range: 50~500Kpa±5KPa

Pressure measurement accuracy: ±0.5%F.S

Medium temperature range: room temperature +10℃~130℃

Temperature deviation: ±2℃

Temperature measurement accuracy: ±0.5%FS

Flow range: 30-300L/min

Flow control method: frequency conversion control, the main road controls flow, pressure and temperature, the main road and each branch road have increased flow, pressure and temperature detection, which is convenient for real-time monitoring of each branch road, and each branch road is equipped with a manual adjustment valve.

PH value test: 0-14 PH, online test, real-time display

PH value test accuracy: ±0.02 PH

Number of workstations: 3

INTERNAL CORROSION TEST BENCH
