From Impulse to Burst—How to Verify a Hose’s Ultimate Limits

Life Testing of Hydraulic Hose Assemblies: From Impulse to Burst—How to Verify a Hose’s Ultimate Limits

In a hydraulic system, a hose assembly may seem like a simple 'connector', but it actually plays a critical role in transmitting pressure, delivering media, and damping vibration. Once a hose bursts or leaks during operation, it will at least cause equipment downtime, and at worst, trigger safety accidents.

So, how to verify whether a hydraulic hose assembly is reliable enough?

The answer lies in two core tests: Impulse testing and Burst testing.

The former simulates the 'service life' of the hose under real working conditions, while the latter tests its 'ultimate limits'. From pulse testing to burst testing, it forms a complete closed loop for verifying the reliability of hydraulic hoses.

Today, combining years of experience in R&D of testing equipment, Getters deeply interprets this technical path for you.

Impulse Testing: The 'Endurance Run' Simulating Real Working Conditions

What is Impulse Testing?

As the name suggests, Impulse Testing applies cyclically fluctuating pressure to the inner cavity of the hose, simulating the frequent pressure fluctuations, shocks and vibrations of the hydraulic system in actual operation.

During the test, the internal pressure of the hose changes cyclically according to a preset waveform (such as trapezoidal wave, sine wave), accompanied by working condition simulations such as temperature control and medium type, and continues for tens of thousands or even hundreds of thousands of cycles until the hose fails or reaches the predetermined number of cycles.

Impulse Testing mainly evaluates performance in four dimensions:

First, Fatigue Resistance: the hose's ability to resist fatigue under repeated pressure fluctuations.

Second, Fitting Sealing Performance: the sealing reliability of crimped fittings under dynamic pressure.

Third, Interlayer Adhesion: the firmness of the bond between the reinforcement layer and the inner and outer rubber layers.

Fourth, Temperature Adaptability: the ability of the hose to maintain its performance in a high-temperature oil environment.

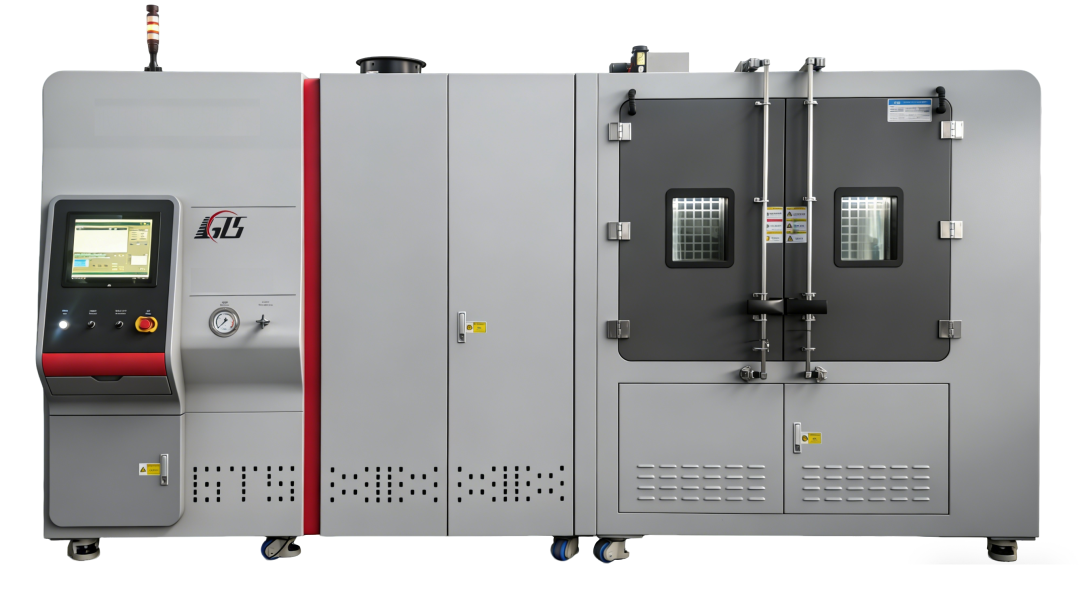

Advantages of Getes Impulse Test Bench

Getes impulse test bench boasts outstanding advantages in this stage:

In terms of high-precision waveform control, closed-loop control and high-response servo valves are adopted to ensure accurate reproduction of each impulse waveform, avoiding deviation of test results caused by equipment errors.

In terms of long-term stability, it supports 7×24 hours continuous operation, meets the test requirements of high cycle times and shortens the verification cycle.

In terms of multi-station parallel testing, a single device can test 4 to 8 stations simultaneously, greatly improving laboratory throughput.

Burst Testing: The Ultimate Challenge to Verify Limit Performance

What is Burst Testing?

If impulse testing is regarded as an 'endurance run', burst testing is an 'ultimate limit challenge'.

Burst testing applies continuously increasing pressure to the inner cavity of the hose until the hose or fitting ruptures, and records the pressure value at the moment of rupture. This pressure value is defined as the minimum burst pressure of the hose assembly.

Burst testing mainly evaluates performance in four dimensions:

Ultimate load capacity: The maximum pressure that the hose assembly can withstand.
Fitting crimping strength: The connection strength between the fitting and the hose.
Reinforcement layer strength: The tensile capacity of steel wire braided or spiral wound layers.
Safety margin verification: Verify whether the actual burst pressure meets the design requirement, which is generally required to be no less than 4 times the working pressure.

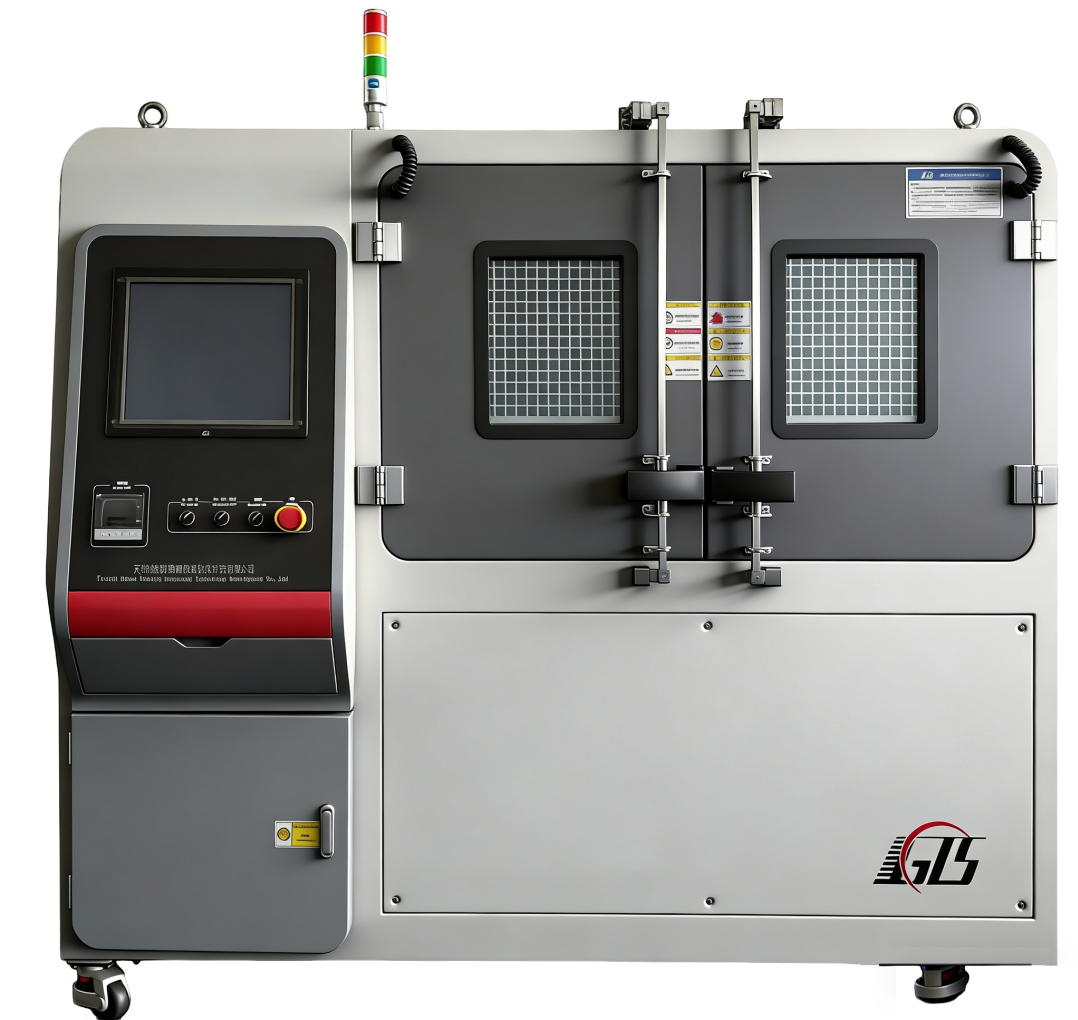

Advantages of Getes Burst Test Bench

In terms of precise control of pressure rise rate, different pressure rise rates can be set in accordance with standard requirements to ensure test results comply with relevant specifications.

In terms of high-pressure output capability, it can cover test requirements up to hundreds of megapascals, satisfying burst tests for various high-pressure and ultra-high-pressure hoses.

In terms of safety protection, it is equipped with a high-strength explosion-proof shield and automatic pressure relief system to ensure the whole test process is safe and controllable.

From Impulse to Burst: Complete Verification Logic

Impulse testing and burst testing are not independent of each other, but form a mutually complementary verification system.

The objective of impulse testing is to verify durability and service life by means of cyclic pressure loading, with output results including cycle times and failure modes.

The objective of burst testing is to verify ultimate strength by continuously increasing pressure until rupture, with output results including burst pressure value and failure position.

A qualified hydraulic hose assembly must withstand the long-term cyclic loading of impulse testing and endure the extreme pressure loading of burst testing.

In actual product development, impulse testing is usually conducted first to verify service life, followed by burst testing to confirm ultimate strength. Together, they form a complete evaluation system for the reliability of hose assemblies.
