Inner Corrosion Test Bench-Tianjin Getes Testing Equipment Technology Development Co., Ltd.

Sand free test medium: a mixture of ethylene glycol, antifreeze, DexPool (or similar) coolant, and ASTM D1384 corrosive solution (without sand)

Total flow rate without sand: adjustable from 15-150L/min, branch flow rate: adjustable from 5-50L/min

Temperature of sand free medium: RT+20~135 ℃

Heating rate of sand free medium: greater than 2 ℃/min, control accuracy ± 2 ℃

Sand free test pressure: 0.5~5Bar

Measurement accuracy without sand: 0.5% F.S (simultaneous control of pressure and flow)

Single test quantity without sand: 1-3 pieces

Sand containing test medium: water, ethylene glycol, antifreeze, DexPool (or similar) coolant and ASTM D1384 corrosive solution mixture, 66% deionized water&33% OA cooler&1% additive, 50% deionized water&50% OA cooler&core sand with a concentration of 2g/L.

Total sand flow rate: adjustable from 15-150L/min, branch flow rate: adjustable from 5-50L/min

Temperature of sand containing medium: RT+20~135 ℃

Heating rate of sand containing medium: greater than 2 ℃/min, control accuracy ± 2 ℃;

Sand test pressure: 0.5~5Bar

Sand measurement accuracy: 0.5% F.S (simultaneous control of pressure and flow)

Single test quantity for sand content: 1-3 pieces

Power supply: 65KW/380V

Total weight: 5000KG

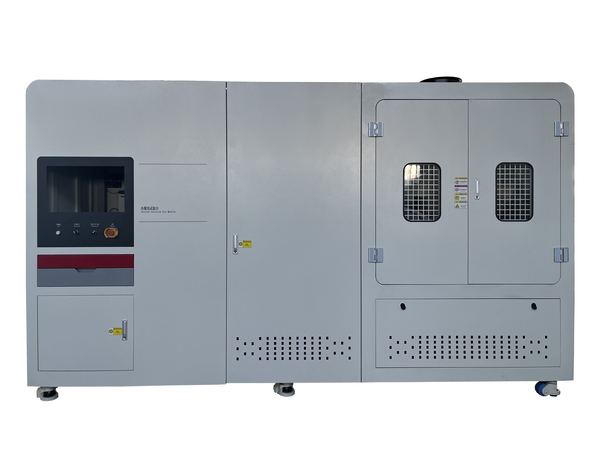

Inner Corrosion Test Bench
