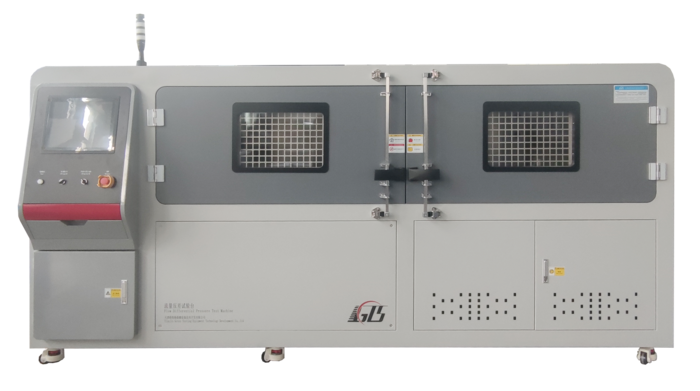

The test bench uses fluorinated liquid as the working medium and is used to test the flow resistance performance of liquid cooling plate components. During the test, the medium can be kept at a constant temperature within the room temperature range, and the pressure difference between the inlet and outlet of the product can be tested by adjusting different flow rates. The pressure difference between the inlet and outlet of the product can also be adjusted to test the flow rate of the product. The flow rate and pressure are not controlled at the same time. The test bench is fully automatically controlled, and the entire equipment is simple to operate, stable in performance, high in cost performance, and easy to maintain. The test bench has the function of automatically recording and saving test data.

Test product Liquid cooling plate

System parameters

Control mode: Computer automatic control

Test medium: Antifreeze, fluorinated liquid

Temperature range: Normal temperature

Flow range: 0.5~5L/min; 5~35L/min

Frequency conversion + diversion control

Maximum inlet pressure of the product 800Kpa, maximum pressure difference between inlet and outlet 200Kpa;

Outlet pressure adjustment back pressure function is required; (the specific implementation method is subject to the final customer)

Pressure and flow are not controlled at the same time;

The sensor is located at the inlet and outlet of the product to measure and calculate the flow resistance;

Differential pressure sensor: (0~200Kpa) is an imported high-quality sensor with an accuracy of not less than 0.1%F.S;

Flow sensor: 5L/min, 35L/min, display accuracy 0.01L/min, accuracy 0.5%F.S;

The temperature sensor is a Class A PT100 thermal resistor;

One piece for a single test;

Test space: 2800mm*800mm*600mm* (length*width*height), normal temperature;
