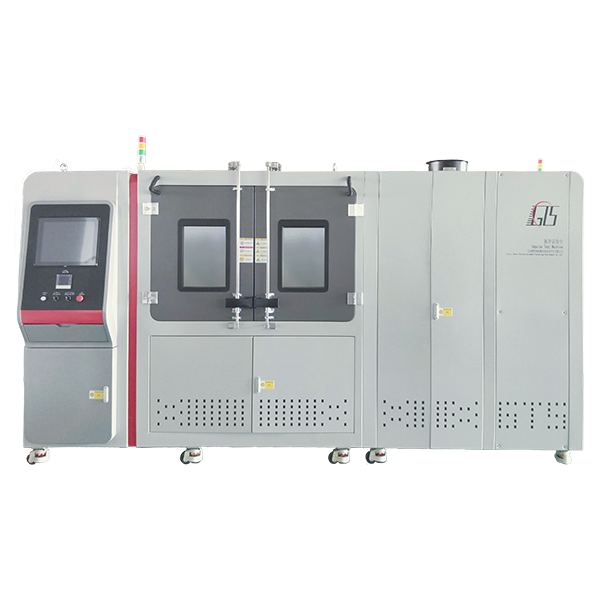

WATER SERIES IMPULSE TEST BENCH

WATER SERIES IMPULSE TEST BENCH-TIANJIN GETES TESTING EQUIPMENT TECHNOLOGY DEVELOPMENT CO., LTD.

It is a impulse test bench developed mainly for rubber cooling water pipes, metal cooling water pipes, radiators, heater cores, heaters, etc. with water, ethylene glycol, and antifreeze as circulating media. It is a comprehensive performance test bench that integrates multiple functions such as controlling high and low frequencies, multiple waveforms, medium temperature, and ambient temperature.

Main functions and features:

1. The equipment is divided into electrical proportional valve control and electro-hydraulic servo control modes for customers to choose from, meeting the different needs of different users. 2. The main components of the equipment are all imported parts, and the operation is safe and reliable.

3. The equipment uses special control test software developed by LABVIEW to complete the test process of full automatic control, automatic measurement, automatic start protection function, real-time display and record pressure, temperature, pulse waveform and other set parameters, suitable for unmanned machines.

4. The internal structure of the equipment is reasonable and the layout is beautiful. It adopts non-welded pipeline connection to prevent leakage and facilitate maintenance;

5. There are different tooling fixtures suitable for different product connections.

Equipment technical parameter selection range:

Applicable scope: rubber cooling water pipe, metal cooling water pipe, radiator, heater core, heater, etc.

Applicable standards: QC/T468, GB/T18948, TL52361, GMW14329, DIN73411, JISD2602, D321WH-A (HONDA), etc.

Pressure selection range: 0-2MPa can be selected arbitrarily

Pulse frequency selection range: 0-3Hz can be selected arbitrarily

Test number setting range: 0-100 00,000 times

Ambient temperature range: -50-200℃ can be selected arbitrarily, control mode: temperature 'fixed value control' and 'alternating control' can be selected

Medium temperature range: -50-200℃ can be selected arbitrarily

Test medium range: water, ethylene glycol, antifreeze, etc.

Vibration mode range: electromagnetic vibration (including sweep frequency and vertical vibration), mechanical vertical vibration, servo vibration, mechanical rotation vibration

Installation method: hose connection, linear connection, adjustable tooling connection

Number of test products: 2-10
