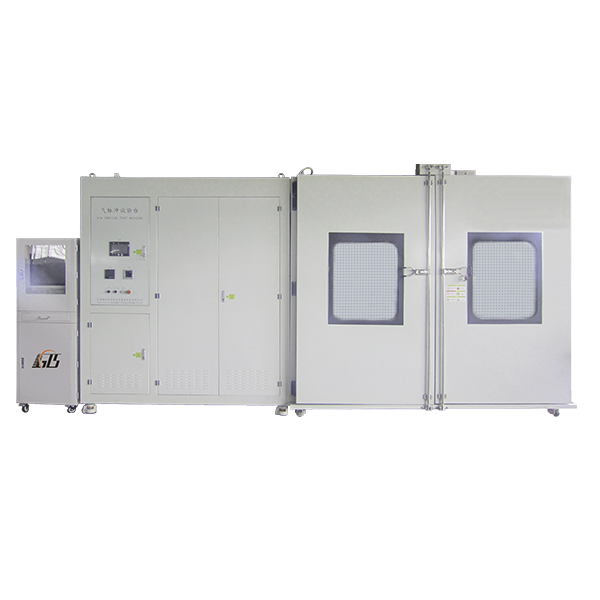

GAS IMPULSE TEST BENCH

GAS IMPULSE TEST BENCH-TIANJIN GETES TESTING EQUIPMENT TECHNOLOGY DEVELOPMENT CO., LTD.

This test bench can complete the gas pressure alternation test of air intercoolers, turbocharger hoses and nylon tubes, and the test medium is high-temperature compressed air. The test bench adopts industrial computer centralized control, and the Chinese interface inputs the test parameters for real-time monitoring and control. It has the functions of air tightness detection before and during the test.

Main functions and features:

1. Principle of gas pulse test: compressed gas source is stored in gas tank, and then high-temperature air required by the test is output through proportional valve, heater and other devices.

2. The medium heating system has the advantages of precise temperature control, independent high efficiency and energy saving.

3. The equipment adopts special control test software developed by LABVIEW to complete the test process of full automatic control, automatic measurement, automatic start protection function, real-time display and record pressure, temperature, pulse waveform and other set parameters, suitable for unmanned machine.

4. After the failure of the test piece, the pressure drops rapidly, and there will be no continuous high-pressure gas spraying, which maximizes personal safety. At the same time, it has the function of automatic shutdown protection after the test piece is damaged. The test box has safety protection measures to avoid the sudden failure of the pipeline and the gas spraying, which will cause damage to the test box.

5. The equipment is beautiful in design, simple to operate and easy to install.

Equipment technical parameter selection range

Applicable scope

Intercooler, turbocharger pipe, nylon pipe and test pieces with compressed air as medium

Applicable standards: QC/T 828, GMW15803, GMW16153, etc.

Pressure selection range: 0-2MPa can be selected arbitrarily

Pulse frequency selection range: 0-2Hz can be selected arbitrarily

Test number setting range: 0-10 million times

Environmental temperature selection range: -50-200℃ can be selected arbitrarily, control mode: temperature "fixed value control" and "alternating control" can be selected

Medium temperature selection range: room temperature-300℃ can be selected arbitrarily

Test medium selection range: air

Vibration mode selection range: electromagnetic vibration (including sweep frequency and vertical vibration), mechanical vertical vibration, servo vibration

Installation method: hose connection, straight line connection, adjustable tooling connection

Number of test products: 2-10
