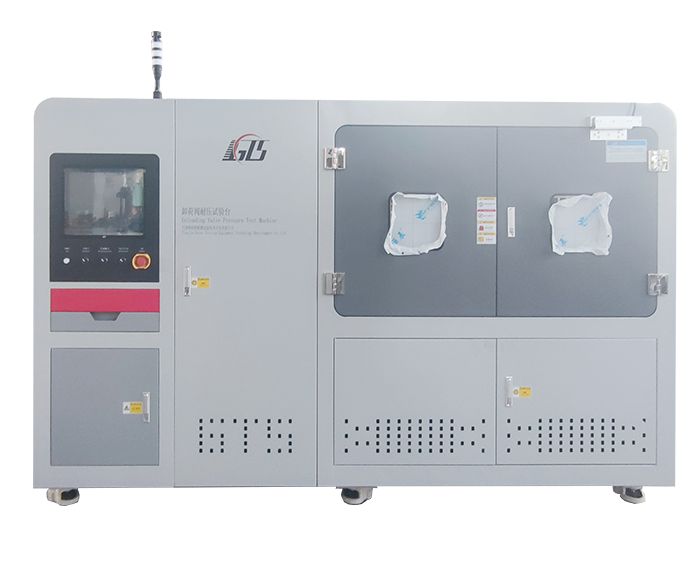

Relief Valve Pressure Test Bench

Overview

The pressure test bench is mainly used for pressure strength test of automobile air conditioners and radiator hoses, condensers, evaporators, oil coolers, heaters, pressure instruments, fire fighting equipment, unloading valves, safety valves, valves, hose assemblies, pipelines, pipes, pressure vessels, pressure transmitters and other products.

Its test pressure, rate and other parameters can be set in the test program. After setting, the machine can complete it automatically.

The software provides a variety of test programs to choose from, and different test programs can be selected according to the actual test purpose.

Power supply: AC220V (+15%/-10%), 50Hz, 2kW;

Gas source: 0.4~0.5MPa dry clean air, air supply ≥1m3/Min;

Test charmer temperature: -10~40 ℃; Test charmer humidity: 20~90%;

Test medium needs to be prepared: 50L

Function, scope of application

1. Burst test, pressure test.

a) Stepless pressure regulation;

b) Pressure relief safety protection;

2. Typical test procedures are:

a) Constant speed pressure increase-pressure relief

b) Constant speed pressure increase-pressure holding-pressure relief

c) Constant speed pressure increase-pressure holding-pressure relief

d) Incremental pressure increase-pressure holding

e) Incremental pressure increase-pressure relief

f) Type test

a) Constant speed pressure increase-pressure relief

b) Constant speed pressure increase-pressure holding-pressure relief

c) Constant pressure pressure increase-pressure holding-pressure relief

d) Incremental pressure increase--pressure holding--pressure relief

e) Incremental pressure increase-pressure relief

f) Type test
