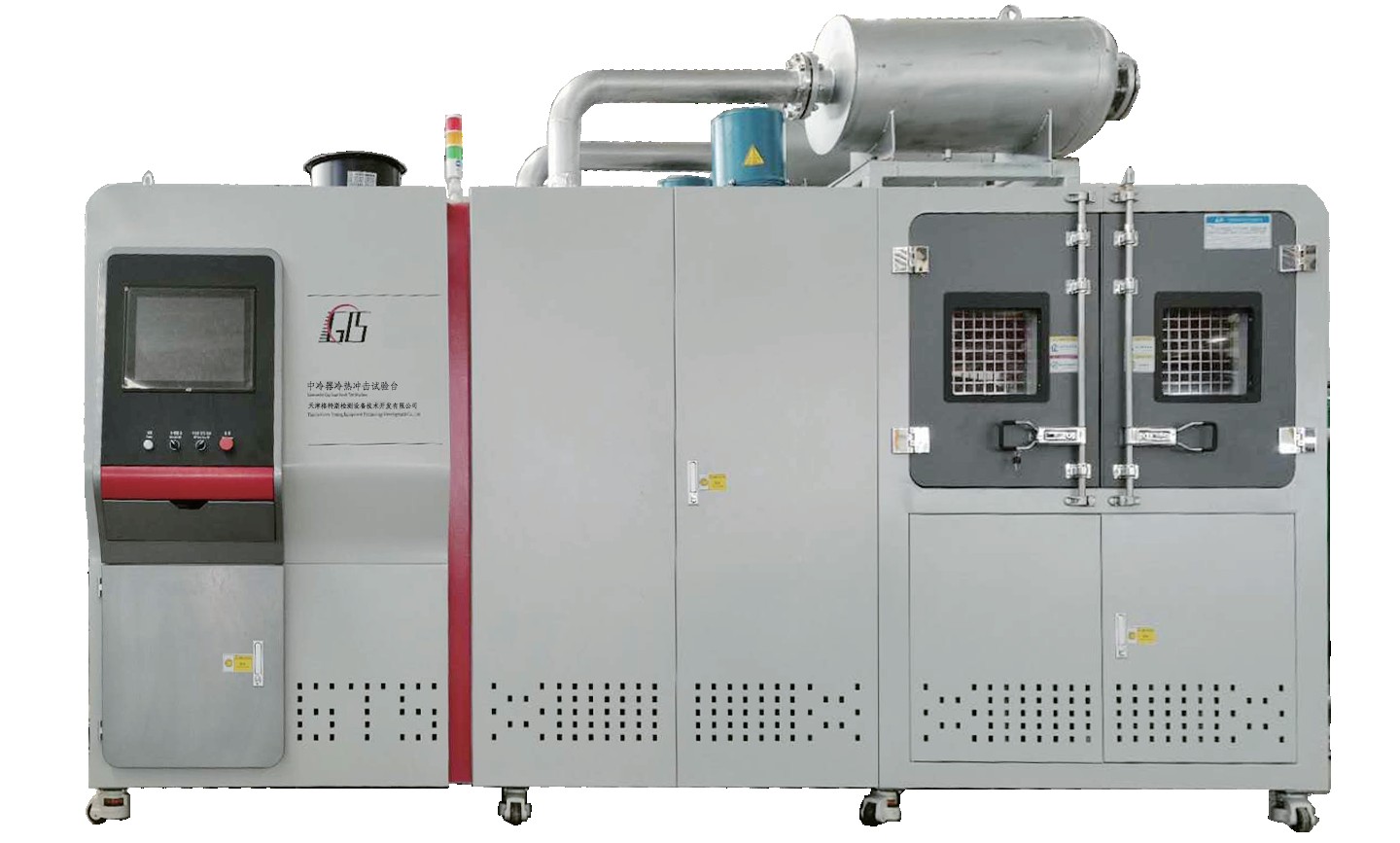

Intercooler Thermal Shock Test Bench
Applicable Products：automobile intercooler and products
that need to withstand high and low temperature impact
- Test pressure range： 1~3bar/14.5~43.5psi
- Test medium： Compressed air
- Test frequency： 1~30times/hour
- Test room temperature： -40~150℃/-40~302℉（Optional）
- Test medium temperature： High temperature：90~300℃/194~572℉/ Low temperature: 10~80℃/50~176℉
- Medium flow rate： 300~3000kg/hour
- Number of specimens： 2~4pcs
- Parameters
- Test pressure range： 1~3bar/14.5~43.5psi
- Test medium： Compressed air
- Test frequency： 1~30times/hour
- Test room temperature： -40~150℃/-40~302℉（Optional）
- Test medium temperature： High temperature：90~300℃/194~572℉/ Low temperature: 10~80℃/50~176℉
- Medium flow rate： 300~3000kg/hour
- Number of specimens： 2~4pcs
Application：
Automobile intercooler and productsthat need to withstand high and low temperature impactTest Standard:
QC/T828-2010, GB/T10408 etc.
Equipment Parameters：（Customizable）
Pressure Range: 1~3bar/14.5~43.5psi
Test Medium: Compressed air
Medium Flowrate: 300~3000kg/hour
Test Chamber Temperature: -40~150℃/-40~302℉
Test Medium Temperature (High temperature): 90~300℃/194~572℉
Test Medium Temperature (Low temperature): 10~80℃/50~176℉
Number of Specimens: 2~4pcs
Impact Frequency: 1~30times/hour
