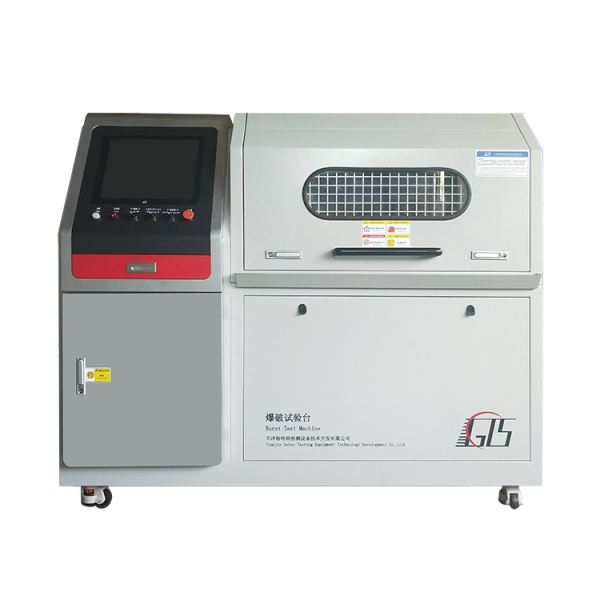

Burst Test Bench(Computer Control)

Test pressure range： 0~5000bar/0~72500psi（adjustable）
Test medium： Water, Water-glycol, Hydraulic oil
Test room temperature： -60~180℃/-76~356°F
Test medium temperature： Room temperature~180℃/Room temperature~356°F
Number of specimens： 1pc
Sample diameter： 3~150mm
Sample length： 100~1000mm
Pressure rise rate： 30~3000bar/min/435~43500psi/min
Test Process： Pressurization-Burst/Pressurization-Pressure Holding-Burst/Pressurization-Pressure Holding-Pressure Relief/Multi-stage Pressurization and Pressure Holding-Burst/Type Test

Parameters

Test pressure range： 0~5000bar/0~72500psi（adjustable）
Test medium： Water, Water-glycol, Hydraulic oil
Test room temperature： -60~180℃/-76~356°F
Test medium temperature： Room temperature~180℃/Room temperature~356°F
Number of specimens： 1pc
Sample diameter： 3~150mm
Sample length： 100~1000mm
Pressure rise rate： 30~3000bar/min/435~43500psi/min
Test Process： Pressurization-Burst/Pressurization-Pressure Holding-Burst/Pressurization-Pressure Holding-Pressure Relief/Multi-stage Pressurization and Pressure Holding-Burst/Type Test

Product Detail

Application:

radiator, condenser, evaporator,intercooler, heater core, oil cooler, heater, pressure gauge,firefighting equipment, metal fttings, valves.hose assembly, pipeline, piping, pressure vessel, pressure transmitter etc.

Technical Parameters: （Customizable）

Test pressure range: 0~5000bar/0~72500psi（adjustable）

Pressure rise rate: 30~3000bar/min/435~43500psi/min

Ambient temperature: -60~180℃/-76~356°F

Medium temperature: Room temperature~180℃/Room temperature~356°F

Test medium: Water, Water-glycol, Hydraulic oil

Sample diameter：3~150mm

Sample length：100~1000mm

Specimen number per test: 1pc

Test Process:

Pressurization-Burst

Pressurization-Pressure Holding-Burst

Pressurization-Pressure Holding-Pressure Relief

Multi-stage Pressurization and Pressure Holding-Burst

Type Test
