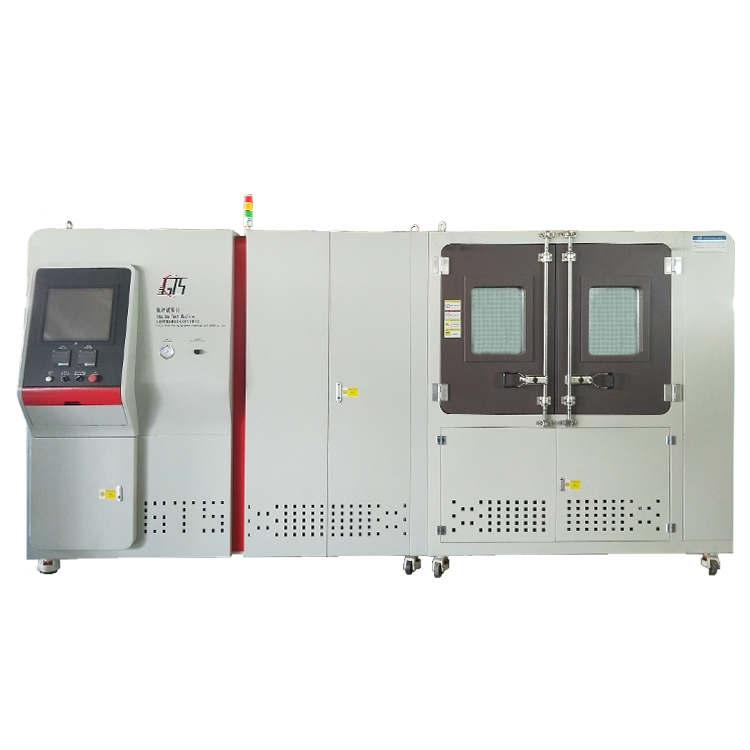

Impulse Test Bench for Aviation or Marine Systems

Application：Hydraulic hose components, fittings, and other pressure bearing components in aviation and marine systems

Test pressure range： 5～60MPa/725~8700psi
Test medium： Hydraulic oil
Test frequency： 0～70±10CPM，adjustable
pressure waveform： Sine wave, triangular wave, trapezoidal wave water hammer mave，etc.
Test room temperature： -55~240℃/-67~464°F，adjustable
Test medium temperature： -55~230℃/-67~446°F，adjustable
Number of specimens： 1~6pcs
a period of time： 0~10millions，adjustable
Vibration mode (optional)： Electromagnetic vibration, Mechanical vibration, Eccentric rotation

Test pressure range： 5～60MPa/725~8700psi
Test medium： Hydraulic oil
Test frequency： 0～70±10CPM，adjustable
pressure waveform： Sine wave, triangular wave, trapezoidal wave water hammer mave，etc.
Test room temperature： -55~240℃/-67~464°F，adjustable
Test medium temperature： -55~230℃/-67~446°F，adjustable
Number of specimens： 1~6pcs
a period of time： 0~10millions，adjustable
Vibration mode (optional)： Electromagnetic vibration, Mechanical vibration, Eccentric rotation

Application：

Hydraulic hose components, fittings, and other pressure bearing components in aviation and marine systems

Test Standard:

GJB2837, GJB3230, GJB3849, SAE AS603B etc.

Equipment Parameters：（Customizable）

Pressure Range: 5～60MPa/725~8700psi

Test Medium: Hydraulic oil

Test Frequency: 0～70±10CPM，adjustable

Pressure Waveform: Sine wave, triangular wave, trapezoidal wave water hammer mave，etc.

Ambient Temperature: -55~240℃/-67~464°F，adjustable

Medium Temperature: -55~230℃/-67~446°F，adjustable

Number of Specimens: 1-6 pcs

Number of Cycles: 0~10millions，adjustable

Vibration Mode(Optional): Electromagnetic vibration, Mechanical vibration, Eccentric rotation
