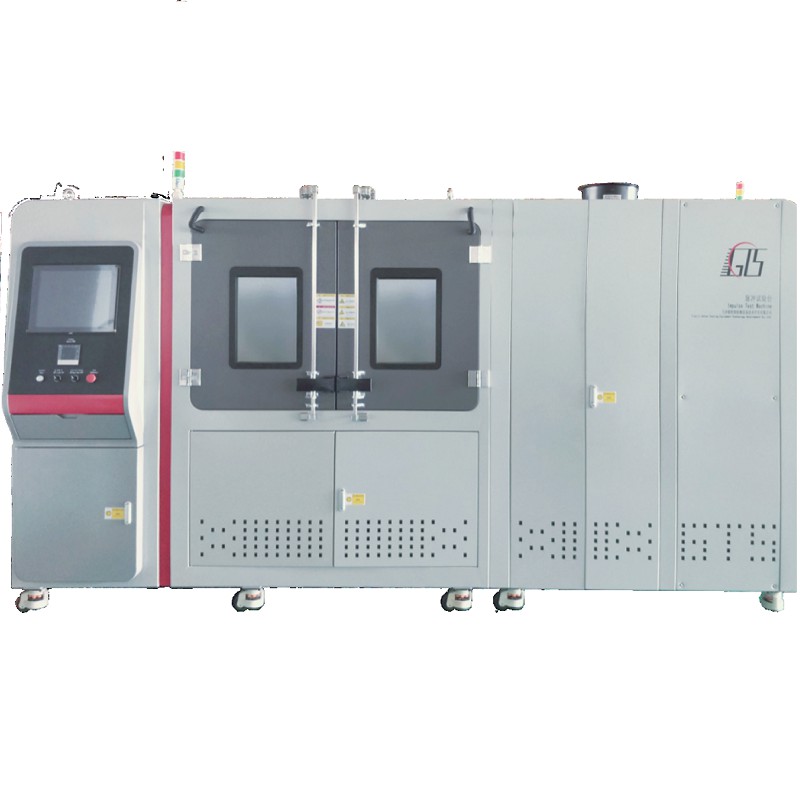

Impulse Test Bench （Liquid Medium）

Application Range：rubber cooling water hose, metal cooling water tube, radiator, heater core, water cooling plate etc.

Test pressure range： 0~20bar/0~300psi (adjustable)
Test medium： Coolant,water, glycol, brake iud,etc.
Test frequency： 0-3Hz(adjustable)
pressure waveform： Sine, Trapezoidal, Triangular (as customer’s request)
Test room temperature： -50~200℃/-58~392℉
Test medium temperature： -50~200℃/-58~392℉
installation method： Hose connection, 90° or 180° connection
Number of specimens： 2-10pcs
a period of time： 0 ~10million cycles（adjustable）
Vibration mode (optional)： Electromagnetic vibration, mechanical vibration, servo vibration, six-axis robot vibration

Parameters

Test pressure range： 0~20bar/0~300psi (adjustable)
Test medium： Coolant,water, glycol, brake iud,etc.
Test frequency： 0-3Hz(adjustable)
pressure waveform： Sine, Trapezoidal, Triangular (as customer’s request)
Test room temperature： -50~200℃/-58~392℉
Test medium temperature： -50~200℃/-58~392℉
installation method： Hose connection, 90° or 180° connection
Number of specimens： 2-10pcs
a period of time： 0 ~10million cycles（adjustable）
Vibration mode (optional)： Electromagnetic vibration, mechanical vibration, servo vibration, six-axis robot vibration

Product Detail

Application Range：

Coolant Hose, Radiator, Heater, Water-cooling Plate etc.

Test Standard:

QC/T468、TL52361、GMW14329、GMW15904、GMW14785、GMW16295、GM6278、JISD2602、D321WH-A(HONDA)、PF90080、PF11118-200、ESDG93-8C012-AA、 ESDG93-8260-AA、B22 6142-10-2007-D、DIN 73411-2、DIN73411

Equipment Parameters：（Customizable）

Pressure Range: 0~20bar/0~300psi (adjustable)

Test Medium: Coolant,water, glycol, brake iud,etc.

Test Frequency: 0-3Hz，adjustable

Pressure Waveform: Sine, Trapezoidal, Triangular (as customer’s request)

Test Chamber Temperature: -50~200℃/-58~392℉

Test Medium Temperature: -50~200℃/-58~392℉

Installation Method: Hose connection, 90° or 180° connection

Number of Specimens: 2-10pcs

Number of Cycles: 0 ~10million cycles（adjustable）

Vibration mode：Electromagnetic vibration, mechanical vibration, servo vibration, six-axis robot vibration
